Quick Details
Brand Name: Pipe fun
Size Range: DN10-DN3200
Standard: ASME, ANSI, BS, DIN, ISO, JID, GOST, etc.
Type: WN, SO, TH, BL, PL, SW, etc.
Material: carbon steel and stainless steel and alloyed material.

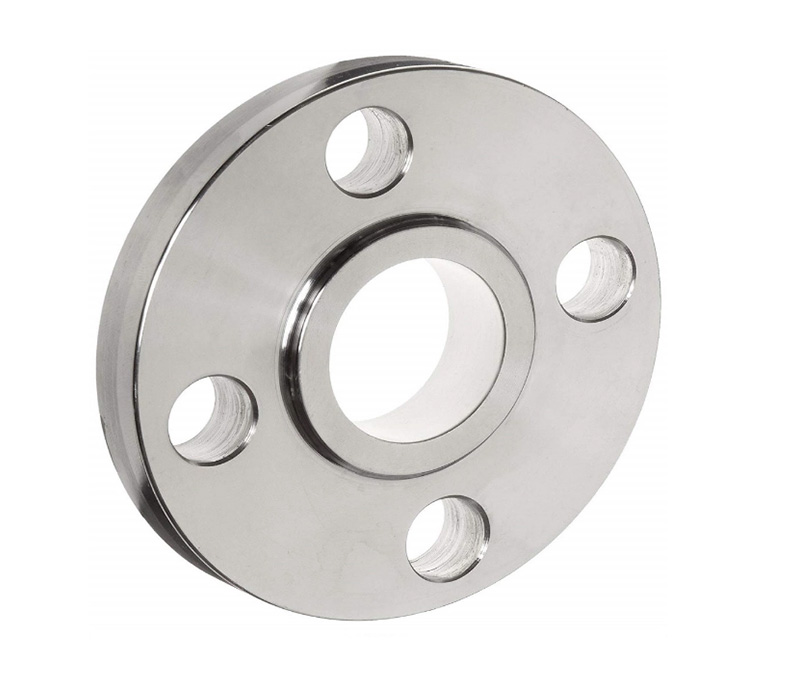

Slip on flange, also called SO flange. It's a kind of flange slides over the pipe with internal design is slightly larger than the pipe. Since the inner diameter of the flange is slightly larger than the outer diameter of the pipe, the SO flange can be directly connected to equipment or pipe by fillet weld at the top and bottom of the flange. It is used to insert the pipe into the inner hole of the flange.
SO Forged Flange | ||||
| Standard | ASME/ANSI B 16.5 | ASME B 16.47 | ASME B 16.48 | GOST 12821 |
| Size | 1/2"-24" | 26"-60" | 1/2"-24" | DN10-DN1200 |
| Pressure | Class 150 300, 400 600, 900 and 2500 | Class 75 150, 300 400, 600 and 900 | Class 150 300, 400 600, 900 and 2500 | PN6, PN10 PN16, PN25 PN40, etc |
| Standard | GOST 12820 | GOST 33259 | EN 1092 | DIN |
| Size | DN10-DN1200 | DN10-DN2400 | DN10-DN2000 | DN10-DN2000 |
| Pressure | PN6, PN10, PN16, PN25 | PN6, PN10, PN16, PN25, PN40, etc | PN6, PN10 PN16, PN25 PN40, etc | PN6, PN10, PN16, PN25, PN40, etc |
| Standard | JIS | SABS/SANS 1123 | BS 4504 | |
| Size | DN10-DN1500 | DN10-DN600 | DN10-DN4000 | |
| Pressure | 5KG, 10KG 16KG, 20KG 30KG, 40KG etc | 1600/3 1600/4 Table D Table E | PN 2.5 PN6, PN10 PN16, PN25 PN40, etc | |

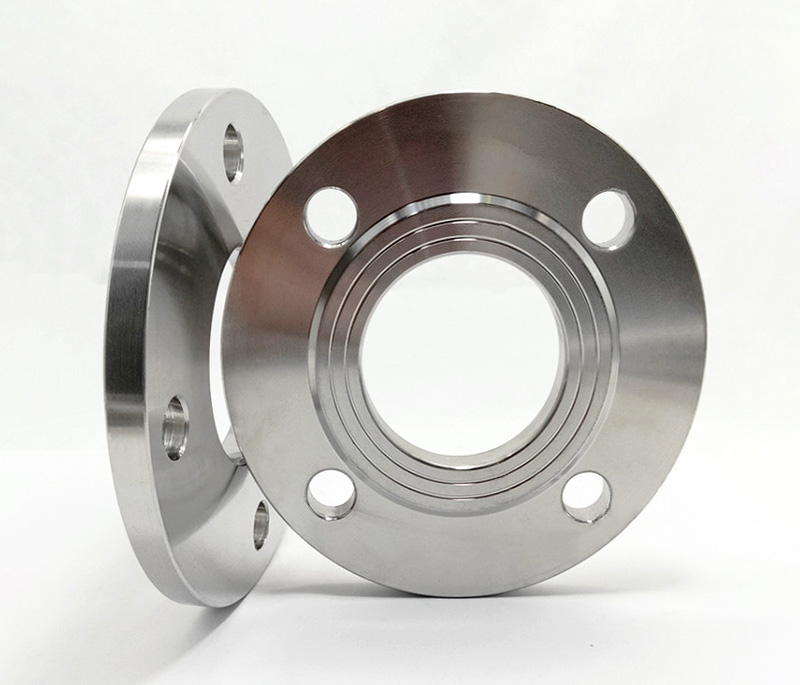

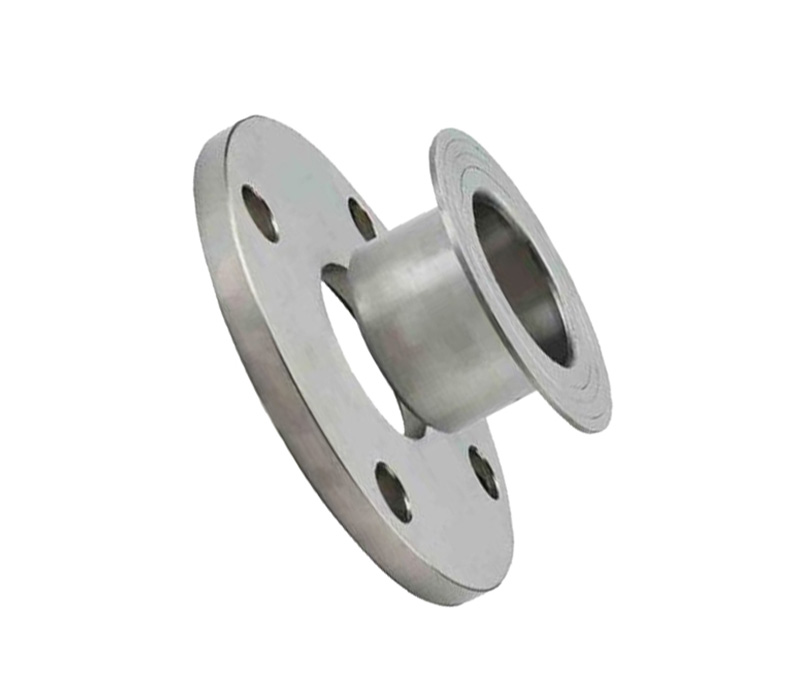

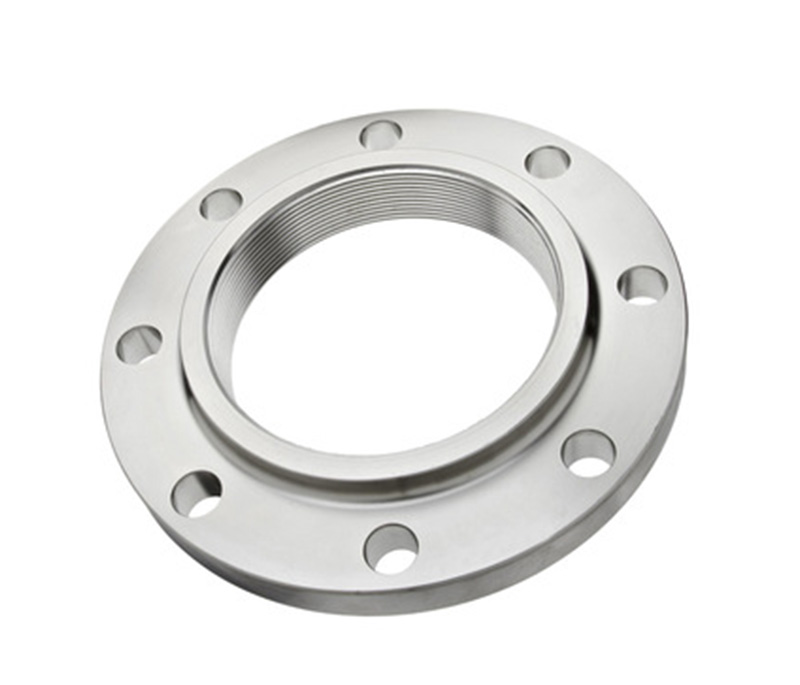

| Flange Type | Weld Neck Flange, Slip-on Flange, Socket Welding Flange, Plate Flange, Blind Flange, Lap Joint Flange, Threaded Flange, Orifice Flange, Spectacle Flange, Stub End, Weld Neck Collar, Welding-on Collar | |||
| Sealing Face | Raised Face (RF), Flat Face(FF), Ring Joint Face(RTJ), Male Face-Female Face(SMF), Tongue Face & Groove Face | |||
| Surface Treatment | Anti-rust Oil, H.D.G., Black Painting, Yellow Painting, Red Painting, Etc | |||
| Technique | Cuting - Heat Treatment - Forging - Machining - Drilling - Painting | |||
| Certificates | ISO 9001, CE, GOST-R, CCS, EN 10204/3.1B, MTC, Radiography Test Report, Ultrasound Test Report, SGS and other third party Inspection Reports | |||
| Package | Pallets, Plywood Case, etc | |||
| Application | Petroleum, Natrual Gas, Water Disposal, Shipbuilding, Nuclear Energy, Chemical Engineering, Deckle, Electric Power | |||
Pipefun Pipe keeps more than 2000 tons stocks at hand, we offer one stop buying and fast delivery. Full sizes and full standards products are available. We also have ISO and API 5L certificates.
Pipefun is the relaible partner for project solution and long time business relationship! Free inquiry for good price!
Display:
Hebei Pipefun Pipe and Fitting facility Co., Ltd., is established in 2000, it is a specialized enterprise professional in producing steel pipes and pipe fittings. Choosing us to be your business partner can bring you great advantages in business! There are 25 engineers and 89 skilled workers in our factory.

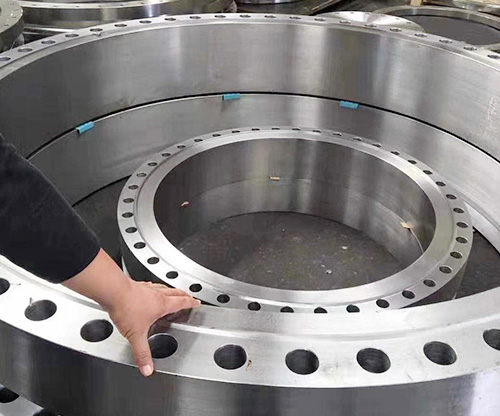

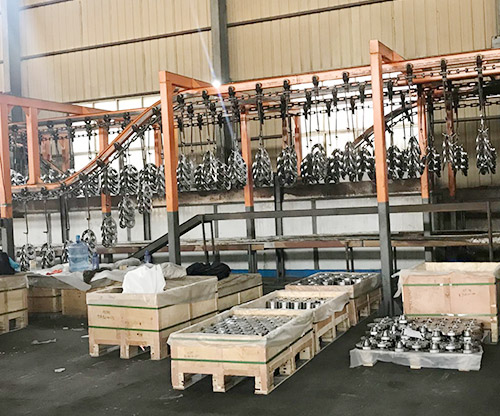

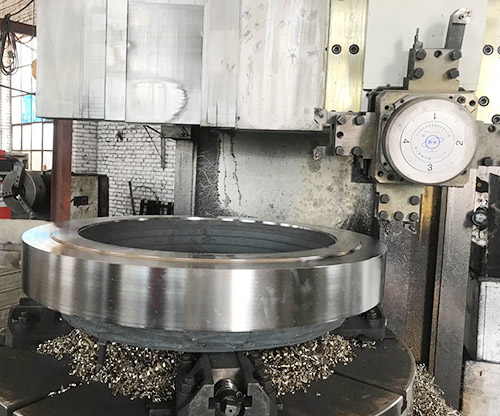

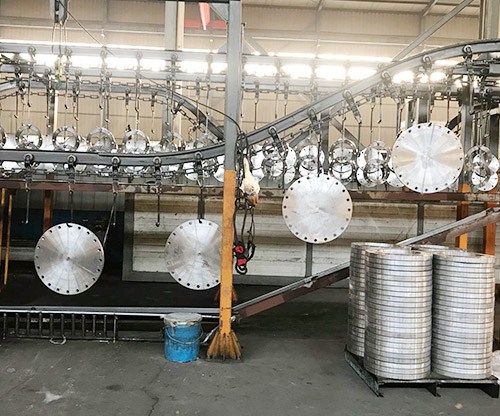

Factory Workshop
