malleable casting iron GI pipe fittings plumbing materials

Quick Details

Place of Origin: Hebei, China

Standard: EN10242

Thread: BSPT NPT

Size: 1/2" x 3/8"~4" x 3"

Surface treatment: Hot Dipped Galvanized

Packing: Carton or Plastic Bag

Working Pressure: 0-2.5Mpa

Connection method: Thread Connecting

Series: Heavy, Medium, Light


Malleable Pipe Fittings

Material

Malleable iron/Carbon steel

Standard

Thread: ISO 7/1


Dimension: ISO 49, DIN 2950,EN10242

Chemical property

(C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%)

Physical property

Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB

Type

Beaded with ribs or banded with ribs


Beaded without ribs or banded wihtout ribs


Round/square

Surface

Galvanized/ no galvanized/sandblasted

Color

Different custom

Model

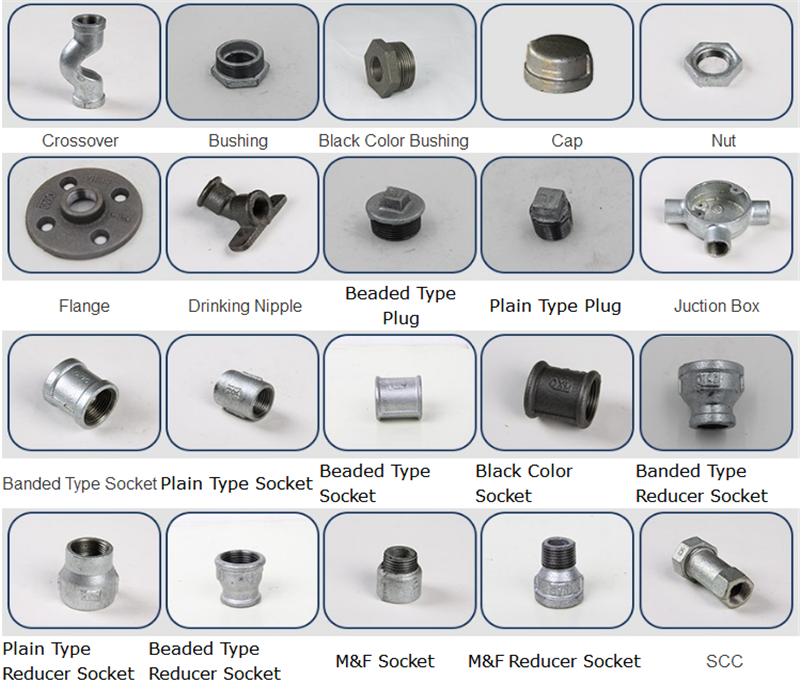

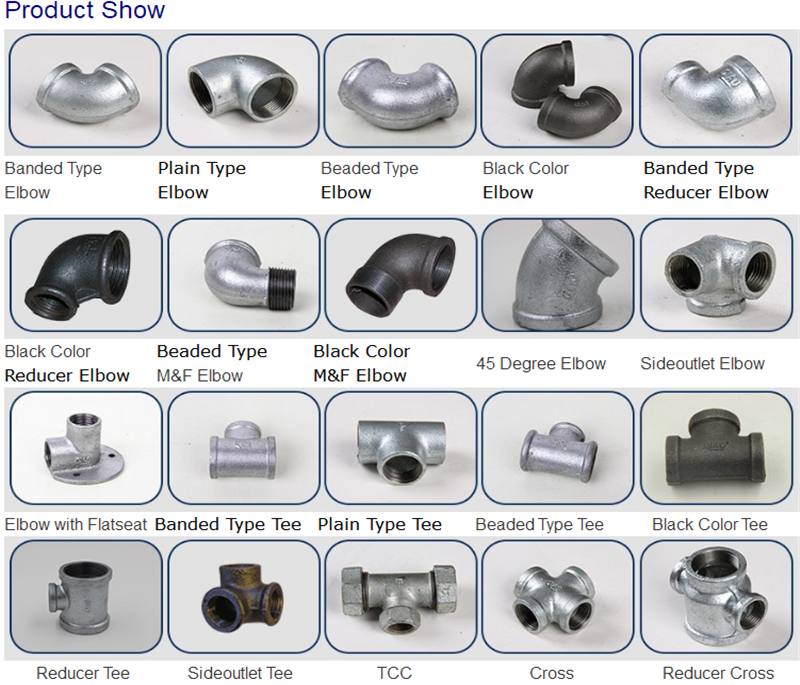

Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges
,Side Outlet Tees, Side Outlet Elbows and etc

Connection

Male, Female,SOCKET

Shape

Equal, Reducing

Certificate

BSI,ANAB,ISO9001,CE

Application

Home Decoration bracket bookshelf


Buyer’s drawings or designs are available

Package

Cartons without pallet


Cartons with pallet


Double woven bags


Or as buyer’s requirements

Delivery details

According to the quantities and specifications of each order


Normal delivery time is from 30 to 45 days after receiving the deposit



Quick Details

Place of Origin: Hebei, China

Standard: EN10242

Thread: BSPT NPT

Size: 1/2" x 3/8"~4" x 3"

Surface treatment: Hot Dipped Galvanized

Packing: Carton or Plastic Bag

Working Pressure: 0-2.5Mpa

Connection method: Thread Connecting

Series: Heavy, Medium, Light

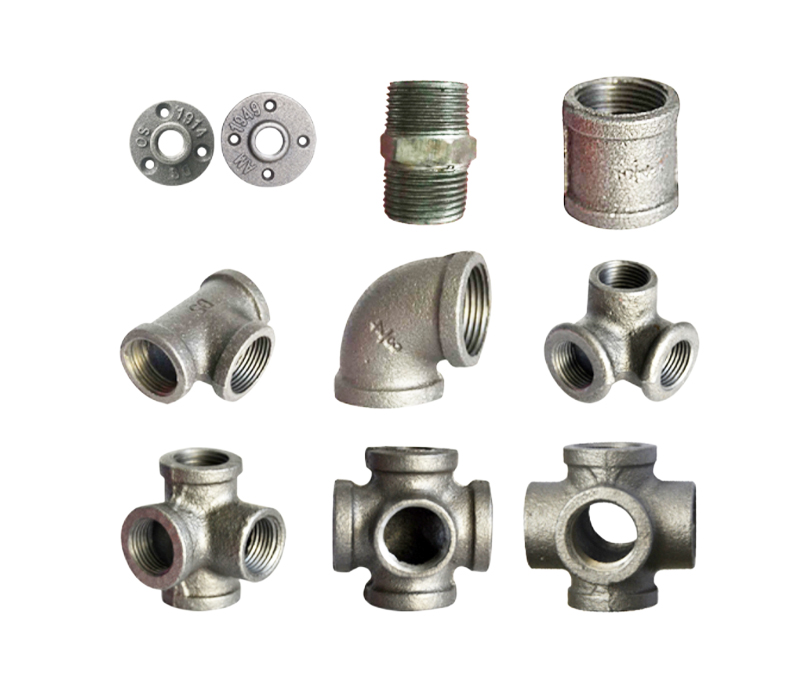

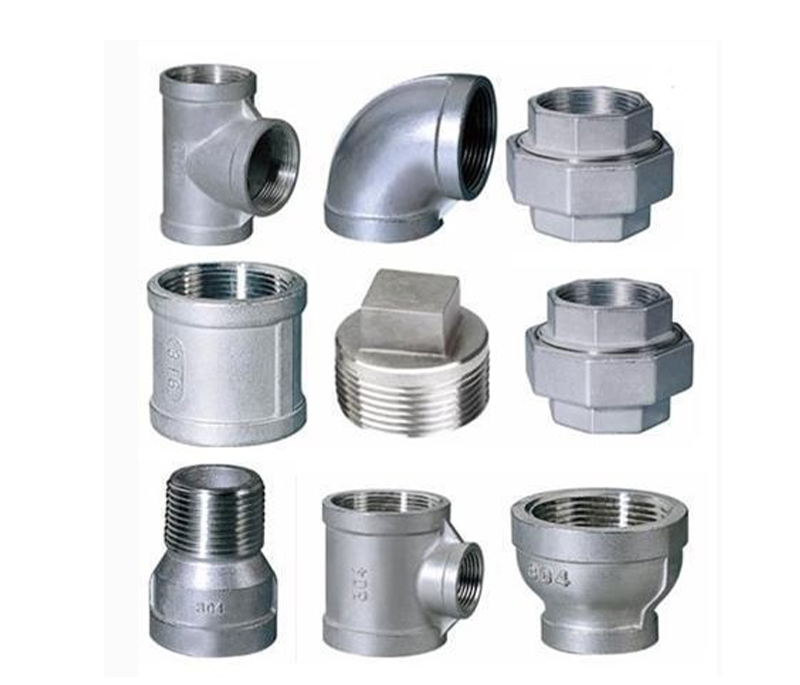

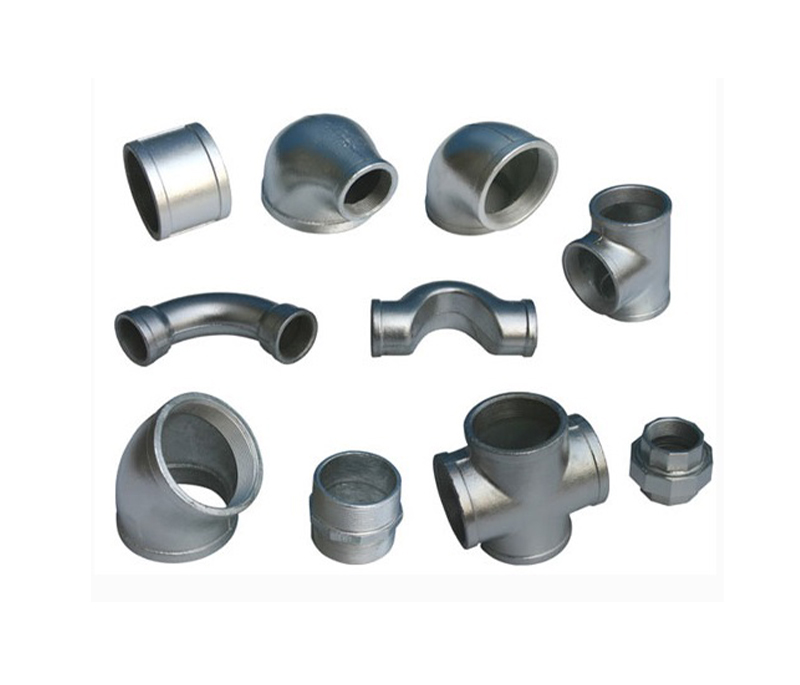

Cast Iron Pipe Fittings

Cast Iron Pipe Fittings




Cast Iron Pipe Fittings

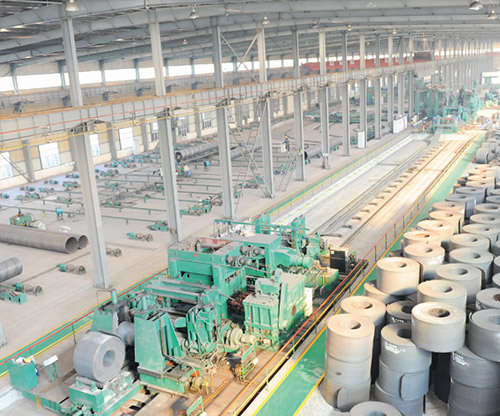

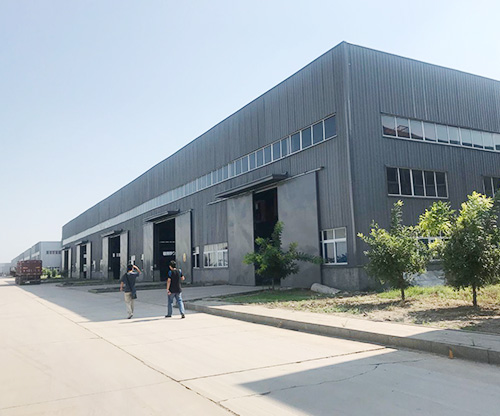

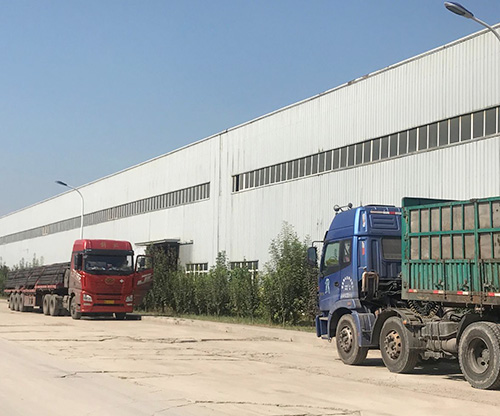

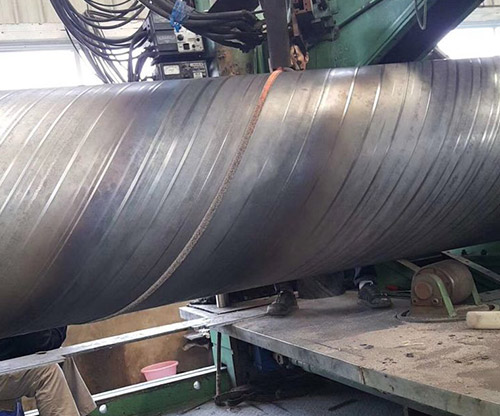

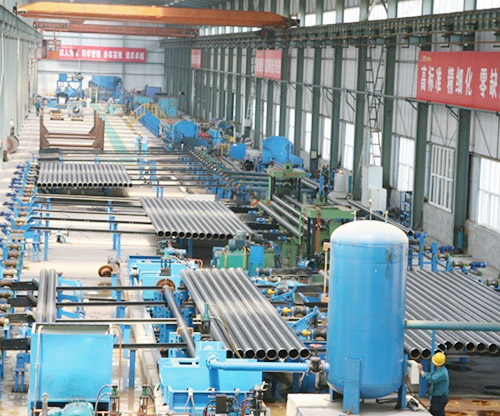

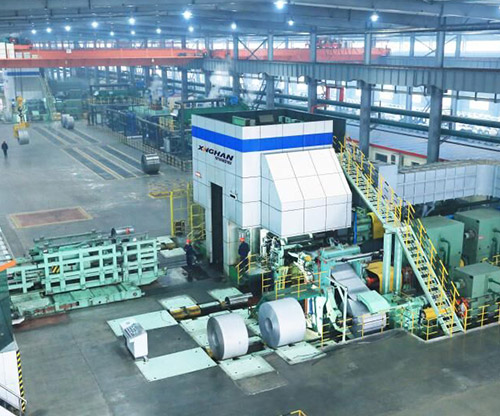

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop

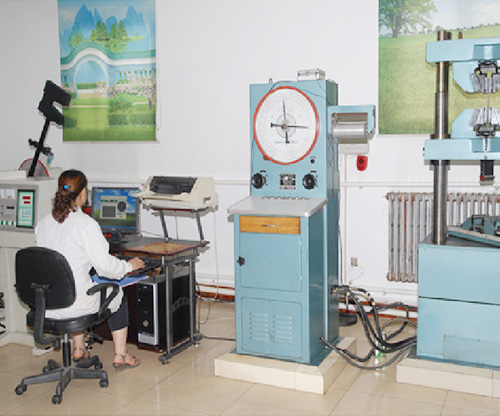

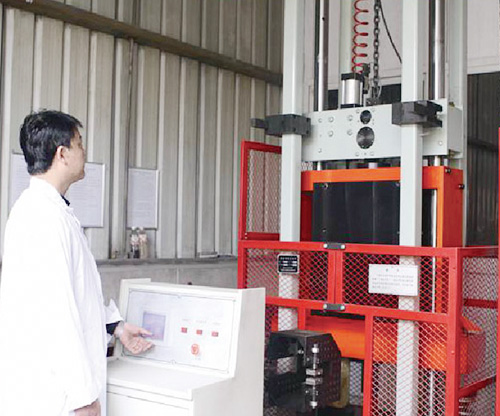

Testing Equipment

Testing Equipment

Testing Equipment

Testing Equipment
