Do you know what is ASME/ANSI B16?

Understanding the differences between ANSI and ASME flanges is essential for anyone involved in piping systems. Both standards play crucial roles in ensuring safety, compatibility, and reliability in industrial applications. While they are often used interchangeably, they serve distinct purposes. ANSI (American National Standards Institute) provides a framework for developing standards in various industries, while ASME (American Society of Mechanical Engineers) focuses specifically on mechanical engineering standards, including flanges.

ASME/ANSI B16. This standard includes many different types of pipes and fittings dimension and materials, and it also have different versions updated to improve the production process. Now lets catch the main points of in the standard.

ASME, short for American Society of Mechanical Engineers and comes as ASME/ANSI B16 , this standards fully including cast iron , cast bronze, wrought copper stainless steel and carbon steel for pipes and fittings.

1.ASME/ANSI B16.1 - 1998 - Cast Iron Pipe Flanges and Flanged Fittings

This Standard for Classes 25, 125, 250 Cast Iron Pipe Flanges and Flanged Fittings covers:

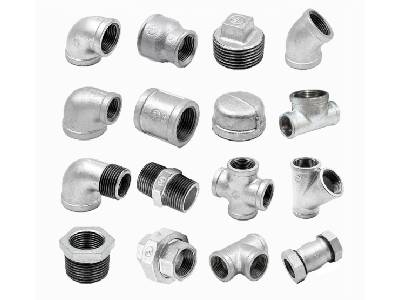

2.ASME/ANSI B16.3 - 1998 - Malleable Iron Threaded Fittings

This Standard for threaded malleable iron fittings Classes 150, and 300

3.ASME/ANSI B16.4 - 1998 - Cast Iron Threaded Fittings

This Standard for gray iron threaded fittings, Classes 125 and 250

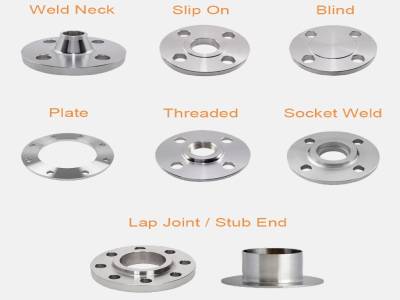

4.ASME/ANSI B16.5 - 1996 - Pipe Flanges and Flanged Fittings

The ASME B16.5 - 1996 Pipe Flanges and Flange Fittings standard covers pressure ( rating class designations 150, 300, 400, 600, 900, 1500, and 2500), materials(A234-WPB, WP5-91; stainless steel SS304/304L, 316/316L), dimensions(NPS 1/2 through NPS 24), tolerances, marking, testing. Also included in this Standard are requirements and recommendations regarding flange bolting, flange gaskets, and flange joints.

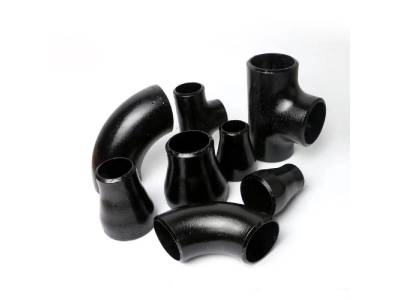

5.ASME/ANSI B16.9 - 2001 - Steel Butt-welding Fittings

Steel Elbow, Tee, Reducer, Cap; sizes NPS 1/2 through 48 (DN 15 through 1200).

6.ASME/ANSI B16.10 - 2000 - Valves

This Standard covers dimensions, material, type size, rating class, and end connection of  valves.

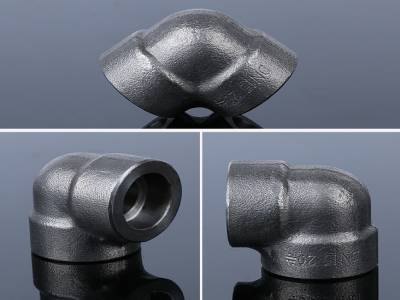

7.ASME/ANSI B16.11 - 2001 - Forged Steel Fittings, Socket-Welding and Threaded

This Standard covers ratings, dimensions, tolerances, marking and material requirements for forged fittings, both socket-welding and threaded.

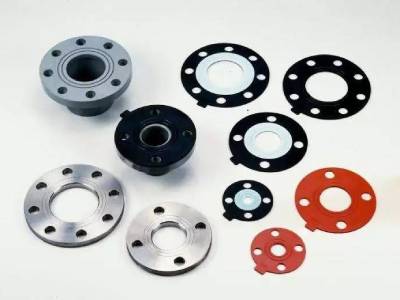

8.ASME/ANSI B16.20 - 1998 - Metallic Gaskets for Pipe Flanges-Ring-Joint, Spiral-Would, and Jacketed

9.ASME/ANSI B16.21 - 1992 - Nonmetallic Flat Gaskets for Pipe Flanges

10.ASME/ANSI B16.28 - 1994 - Wrought Steel Butt-welding Short Radius Elbows and Returns

11.ASME/ANSI B16.33 - 1990 - Manually Operated Metallic Gas Valves for Use in Gas Piping Systems Up to 125 psig

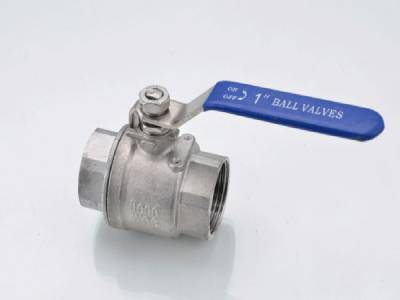

12.ASME/ANSI B16.34 - 1996 - Valves - Flanged, Threaded, and Welding End

13.ASME/ANSI B16.38 - 1985 (R1994) - Large Metallic Valves for Gas Distribution

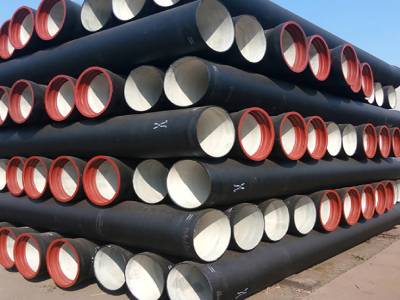

14.ASME/ANSI B16.42 - 1998 - Ductile Iron Pipe Flanges and Flanged Fittings, Classes 150 and 300

15.ASME/ANSIB16.44 - 1995 - Manually Operated Metallic Gas Valves for Use in House Piping Systems

16.ASME/ANSI B16.45 - 1998 - Cast Iron Fittings for Solvent Drainage Systems

The Standard for cast iron drainage fittings used on self-aerating, one-pipe Solvent drainage systems.

17.ASME/ANSI B16.47 - 1996 - Large Diameter Steel Flanges: NPS 26 through NPS 60

18.ASME/ANSI B16.48 - 1997 - Steel Line Blanks

19.ASME/ANSI B16.49 - 2000 - Factory-Made Wrought Steel Butt-welding Induction Bends for Transportation and Distribution Systems (e.g., ASME B31.4, B31.8, and B31.11).

Conclusion

ASME/ANSI B16 is a comprehensive standard that outlines the dimensions, materials, and specifications for various types of pipes and fittings used in industrial applications. This standard encompasses a wide range of materials, including cast iron, cast bronze, wrought copper, stainless steel, and carbon steel. Regular updates to the standard aim to enhance production processes and ensure that components meet evolving industry requirements. By adhering to ASME/ANSI B16, manufacturers and engineers can ensure compatibility, safety, and reliability in piping systems, making it a critical reference in the field of mechanical engineering.

Hebei Pipefun Pipe and Fitting Facility Co., Ltd. specializes in producing high-quality steel pipes and fittings, certified by ISO 9001 and API5L. The extensive product range includes ASTM, BS, DIN, and JIS standards, with pipeline diameters spanning from 38mm to 4000mm. Various coatings, such as 2PE, 3PE, and epoxy coal bitumen, ensure durability for diverse applications. Successfully exported to Europe, the Middle East, Asia, and South America, the products have received positive feedback and fostered long-term partnerships. Choose this facility for reliable solutions in your piping needs!

FAQs

Q1: Is ANSI accredited?

Yes, ANSI is accredited by the American National Standards Institute itself, as it develops and oversees voluntary consensus standards across various industries.

Q2: Is a lower ANSI rating better than a higher one?

No, a lower ANSI rating does not imply better quality. ANSI ratings indicate different levels of performance and compatibility; typically, higher ratings indicate better performance or stricter standards.

Q3: What does ASME stand for?

ASME stands for the American Society of Mechanical Engineers, an organization that sets standards for mechanical engineering, including those related to pipes and fittings.
