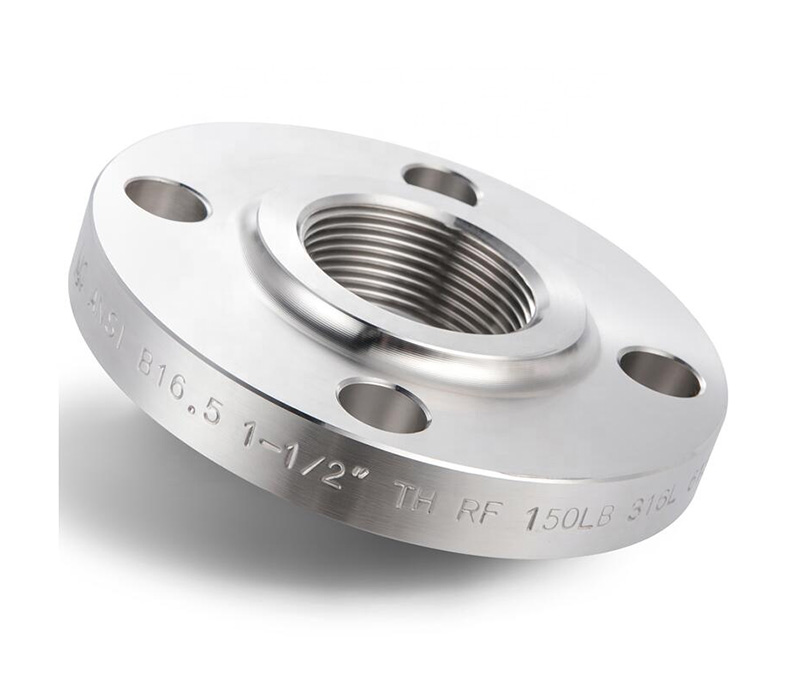

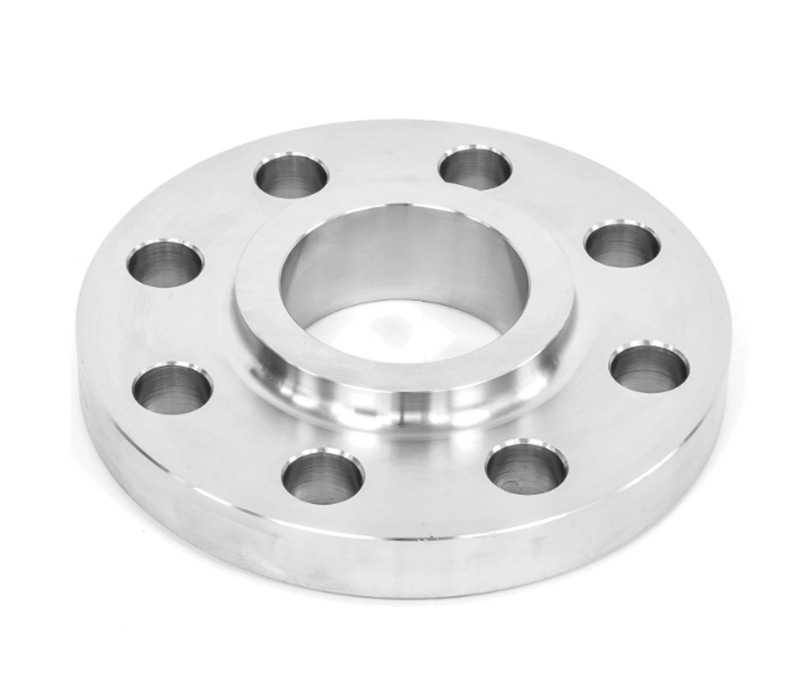

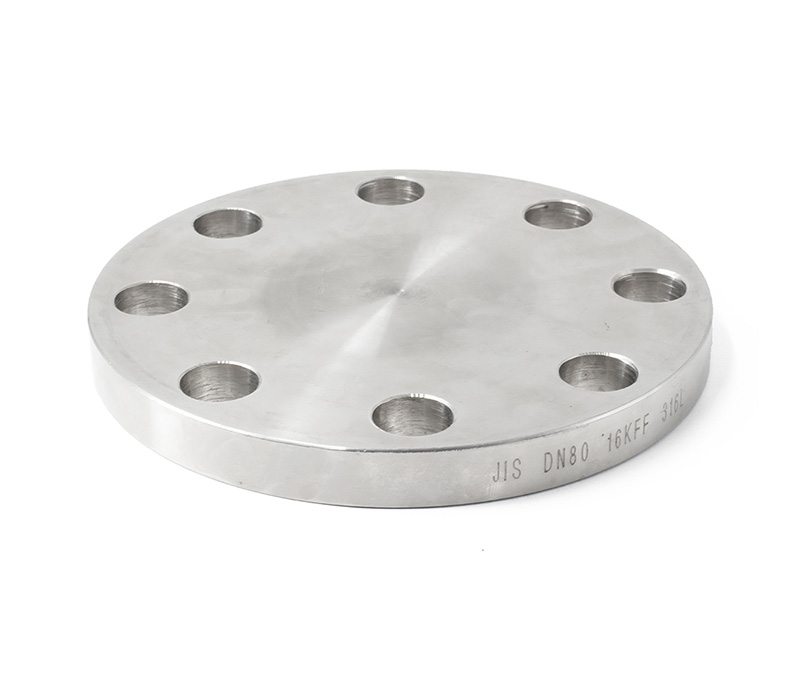

EN1092-1:2007 Flange type1 type2 type11

Quick Details

Brand Name: Pipe fun

Size Range: DN10-DN3200

Standard: ASME, ANSI, BS, DIN, ISO, JID, GOST, etc.

Type: WN,  SO, TH, BL, PL, SW, etc.

Material: carbon steel and stainless steel and alloyed material.


This European standard specifies requirements for circular steel flanges in PN designations PN 2,5 to PN 400 and nominal sizes from DN 10 to DN 4000. This standard specifies the flange types and their facings, dimensions, tolerances, threading, bolt sizes, flange face surface finish, marking, materials, pressure/ temperature ratings and flange masses.

Size1/2"-24"26"-48"
Rating150LB/300LB/600LB/1500LB/2500LB
StandardASME B16.5, ASME B16.47A, ASME B16.47B, MSS SP 44, DIN 2632, DIN2633, DIN2634, DIN2635, DIN2636, JISB2220, BS4504, GB, etc
MaterialCarbon steel: A105, A350 LF2, A694 F52, F65, Q235 etc. Stainless steel: ASTM A182 F304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10, A182 F51, F53, F55 etc.
Surfaceusually paint black, galv., for carbon steel bend and alloy steel bend, and for stainless steel bends we usually dont do anything on the surface
CertificationISO 9001:2015
Packingplywood cases, pallets, or as per your request.
ApplicationPetroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction etc




Pipefun Pipe keeps more than 2000 tons stocks at hand, we offer one stop buying and fast delivery. Full sizes and full standards products are available. We also have ISO and API 5L certificates.

Pipefun is the relaible partner for project solution and long time business relationship! Free inquiry for good price!


Display:


EN1092-12007 Flange

Hebei Pipefun Pipe and Fitting facility Co., Ltd., is established in 2000, it is a specialized enterprise professional in producing steel pipes and pipe fittings. Choosing us to be your business partner can bring you great advantages in business! There are 25 engineers and 89 skilled workers in our factory.

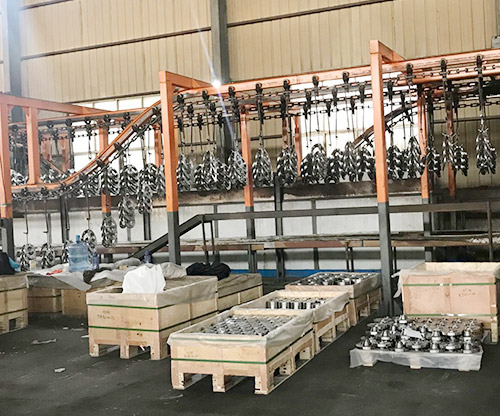

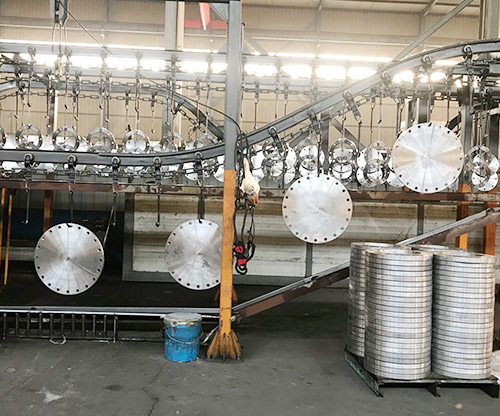

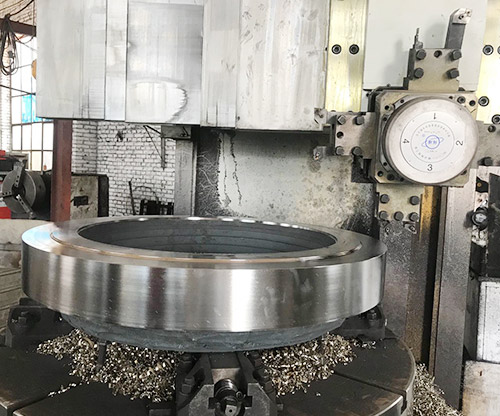

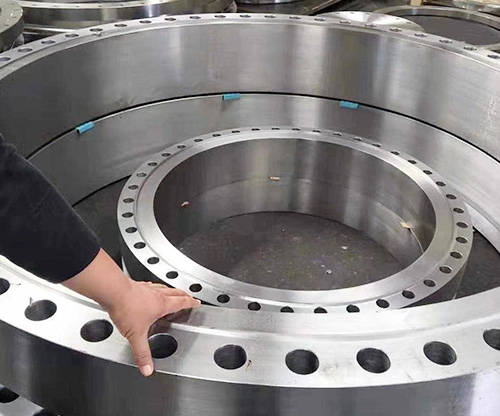

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop

Factory Workshop
