Quick Details
Brand Name: Pipe fun
Size Range: DN10-DN3200
Standard: ASME, ANSI, BS, DIN, ISO, JID, GOST, etc.
Type: WN, SO, TH, BL, PL, SW, etc.
Material: carbon steel and stainless steel and alloyed material.
The British Standard BS10, 1962 is a standard Specification for Flanges and Bolting for Pipes, Valves, and Fittings. The BS 10 flange dimensions in mm covers boss, plain, integrally cast or forged, and welding neck type flanges, in flanges as per BS 10 table.
| Product Name | Steel Flange | |
| Items | Plate, Welding Neck, Slip on, Blind, Lap joint, Threaded Flange | |
| Standard | ANSI | ANSI B16.5 ASME B16.47 series A/B |
| DIN | DIN | |
| GOST | GOST 12820-80 | |
| EN | EN1092-1:2002 | |
| JIS | JIS B2220-2004, KS D3576, KS B6216 KS B1511-2007 JIS B2261; JIS B8210 | |
| BS | BS4504 BS10 Table D/E | |
| Material | ANSI | CS A105/SA 105NSS 304/304L, 316/316L Alloy Steel: WHPY45/52/65/80 |
| DIN | CS RST37.2;S235JR SS 304/304L,316/316L | |
| GOST | CS CT20;16MN;SS 304/304L,316/316L | |
| EN | CS RST37.2;S235JR;C22.8SS 304/304L,316/316L | |
| JIS | SS400,SF440 SS 304/304L, 316/316L | |
| BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500 2500lbs |
| DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| GOST | PN6,PN10,PN16,PN25 | |
| EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| JIS | 1K,2K,5K,10K,16K,20K,30K,40K | |
| BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| Size | ANSI | 1/2″ – 60″ |
| DIN | DN15-DN2000 | |
| GOST | DN15-DN1600 | |
| EN | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS | DN15-DN2000 | |
| Coating | varnish, yellow paint, anti-rust oil, galvanizing etc | |
| Usage | Used for the connection of all kinds of pipelineto convey the water, steam, air, gas and oil | |
| Package | Wooden cases/pallets | |
| Delivery | Within 20 days | |
Pipefun Pipe keeps more than 2000 tons stocks at hand, we offer one stop buying and fast delivery. Full sizes and full standards products are available. We also have ISO and API 5L certificates.
Pipefun is the relaible partner for project solution and long time business relationship! Free inquiry for good price!

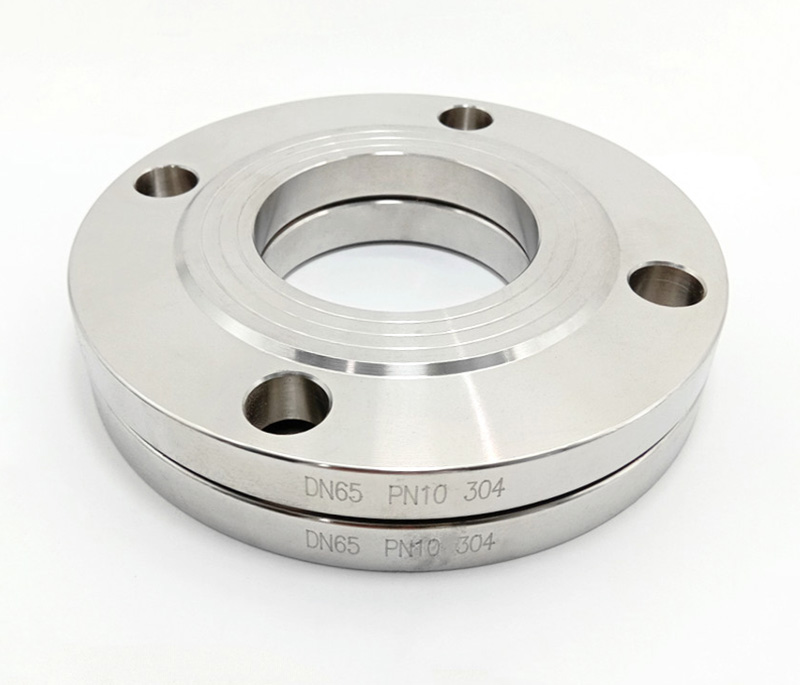

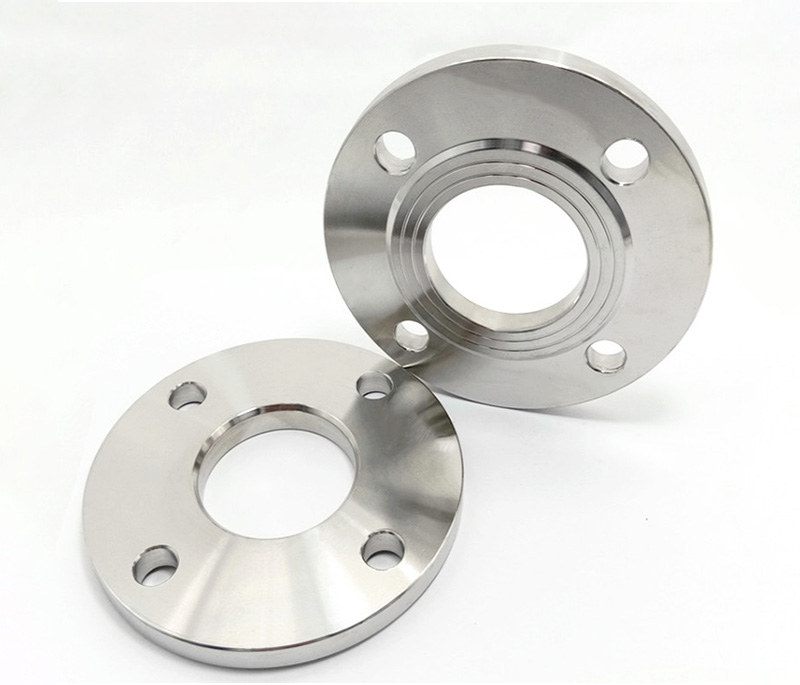

Display:
Hebei Pipefun Pipe and Fitting facility Co., Ltd., is established in 2000, it is a specialized enterprise professional in producing steel pipes and pipe fittings. Choosing us to be your business partner can bring you great advantages in business! There are 25 engineers and 89 skilled workers in our factory.

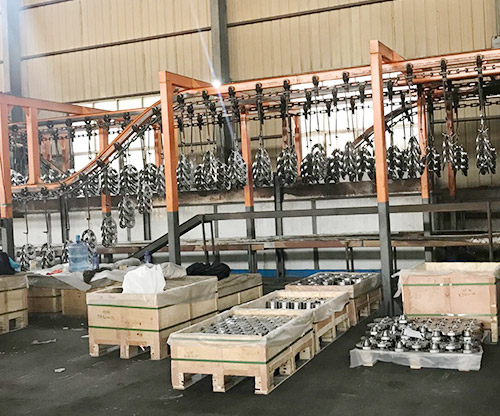

Factory Workshop

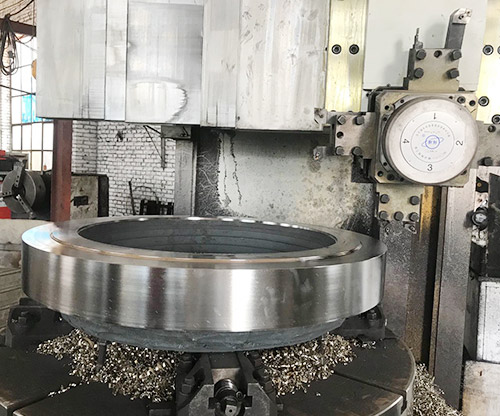

Factory Workshop

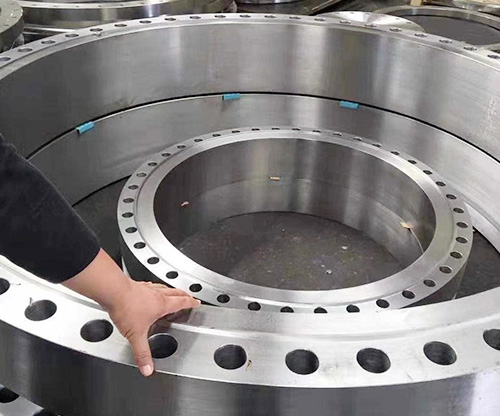

Factory Workshop

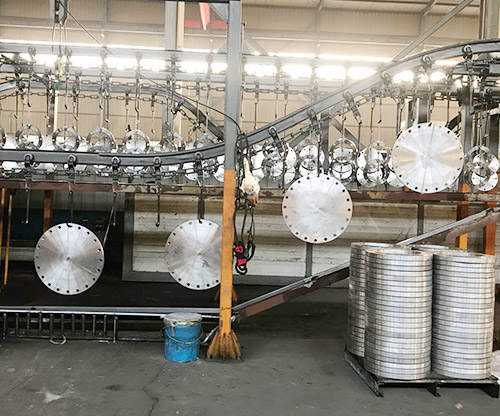

Factory Workshop
