Flanges are essential components used in piping systems to connect pipes, valves, pumps, and other equipment. They provide a means of joining two or more sections of pipe together securely, allowing for easy assembly, disassembly, and maintenance of the system. Here's what you need to know about flanges:

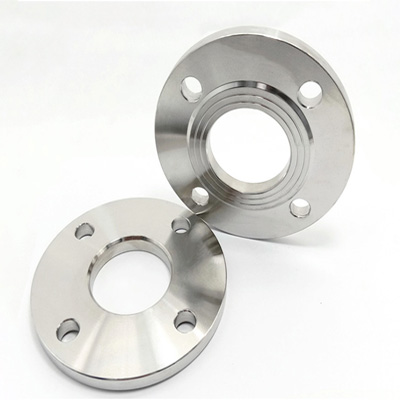

Definition and Types: A flange is a flat, circular or ring-shaped fitting with evenly spaced holes for bolts or studs. It is usually made of forged or cast steel, stainless steel, or other metals. Flanges come in various types, including welding neck, slip-on, socket weld, threaded, blind, and lap joint flanges. Each type has specific characteristics and applications based on their design and connection method.
Connection and Assembly: Flanges provide a connection point between pipes or equipment. The flanges are aligned and bolted together using bolts or studs, along with gaskets to create a secure and leak-proof joint. The number and size of bolts/studs depend on the flange size and pressure rating of the system. Proper assembly and tightening of bolts/studs are crucial to ensure a reliable and tight connection.
Pressure and Temperature Ratings: Flanges are designed to withstand specific pressure and temperature conditions based on the requirements of the piping system. Different types of flanges have varying pressure and temperature ratings. It is essential to select the appropriate flange with the correct pressure and temperature ratings to ensure the safety and integrity of the system.
Gaskets: Gaskets are placed between flange faces to provide a seal and prevent leakage. They are usually made of materials such as rubber, graphite, or PTFE (Polytetrafluoroethylene). The gasket material is selected based on the type of fluid, pressure, and temperature of the system. Proper gasket selection and installation are critical for achieving a reliable and leak-free joint.
Flange Faces and Surface Finish: Flanges have specific face designs and surface finishes to ensure proper sealing and gasket performance. Common flange face designs include raised face (RF), flat face (FF), and ring joint (RTJ). The surface finish of the flange face, typically expressed in terms of roughness or smoothness, affects the sealing capability of the gasket. The surface finish is carefully controlled to achieve optimal gasket performance.
Flange Standards and Dimensions: Flanges are manufactured to various international standards, such as ASME (American Society of Mechanical Engineers), ANSI (American National Standards Institute), API (American Petroleum Institute), and DIN (Deutsches Institut für Normung). These standards define the dimensions, materials, pressure ratings, and testing requirements for flanges. It is important to select flanges that comply with the relevant standards to ensure compatibility and interchangeability.
Flange Materials: Flanges are available in a wide range of materials to suit different applications and environments. Common materials include carbon steel, stainless steel, alloy steel, and exotic alloys such as Inconel and Hastelloy. The material selection depends on factors such as the type of fluid, temperature, pressure, and corrosion resistance requirements.
Flange Applications: Flanges are used in various industries and applications, including oil and gas, petrochemical, power generation, water treatment, HVAC (heating, ventilation, and air conditioning), and process industries. They are found in piping systems for fluid transportation, equipment connections, and structural support. Flanges are also used in offshore platforms, refineries, chemical plants, and other industrial facilities.
